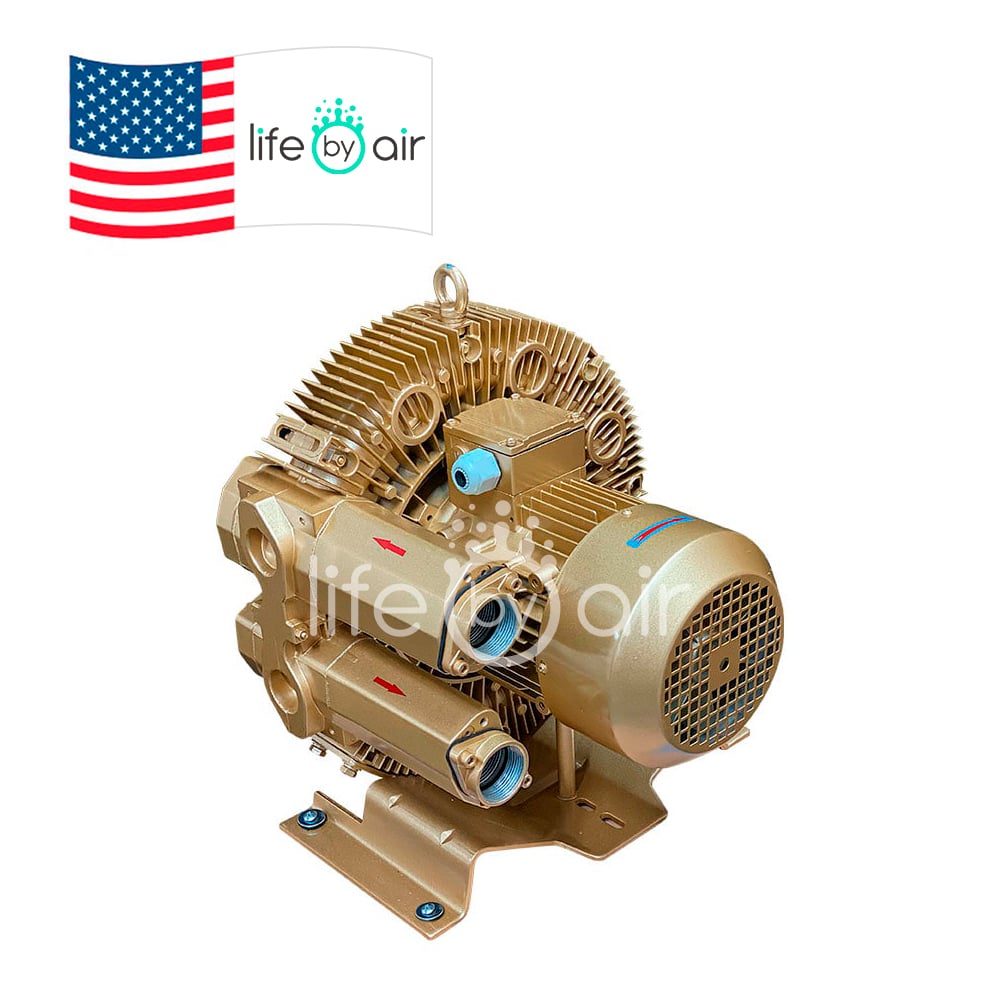

EKZ 103 – 36 Blower | Regenerative Blower | 3.6 PSI | 220 V

Description Regenerative / Side channel Blower: Multi-purpose blower suitable for various applications that require HIGH air flow rates at LOW – Pressure or Vacuum. Only AIR or GAS should pass through the blower, no dust or powder. Perfect for industrial use in: WasteWater Treatment Plants WWTP, Aquaculture (commercial fish farms), Aquaponics, Pneumatic Transport, Vacuum Sealing, Air Knifes, Aeration, Drying, De-icing, Bottle Filling, Milking Machines, Lifting, Packaging, Odor control, Dust or Smoke removal, Scrap collection, Vacuum transfer, Air-Cushion Tables, Agricultura/Manufacturing/Textile Machines, Chemical Processing, Printing, Food, Electro-plating, and many more. They can be mounted in either a vertical or horizontal position to provide a contaminant-free supply of air. Their small footprint and light weight allows them to be installed even in confined spaces or in a ventilated enclosure. Because they are oil free, they require no maintenance. Life by Air | Regenerative Blowers are available in either single (one impeller) or double (two impeller) stage configurations with various voltage configurations. The impeller is directly connected to the motor shaft, providing powerful force without excessive friction. The bearings are outside the compression chamber, ensuring maximum operational reliability under high differential pressure. This low-maintenance, oil-free design provides continuous, dependable 24/7 service to our customers. Operating Principle: Air or gas is pulled into a side channel through the air inlet and is accelerated by an impeller rotating inside the impeller chamber. The resulting spin pressurizes air or gas and is discharged through the exhaust outlet. This type of operation is also known as a “ring” blower design. Key features include: Simple installation – compact design Dynamically balanced aluminum impellers Horizontal or Vertical operation makes them very versatile Oil free – Lightweight High temperature bearings Easy to maintain and operate Quiet Operation | Can run 24/7 Assembled in the United States No maintenance required! EKZ 103-36 Specifications: Airflow: 61 CFM (103 m3/h) | Pressure: 3.6 PSI (250 mbar) | Vacuum: 7.4 inHg (-250 mbar) | Stages: Double | Suction and Discharge Ports: 1-1/4” inch NPT Power: 0.83 kW (1.1 HP) | Phase: One – 5.6 Amps | 110 volts – 60 Hz | Noise: 61 dB (A) | Blower Dimension: Length: 20 Width: 15 Height: 12 (inch) – 33 lb | Includes 6’ cable with 3 prong USA plug.
