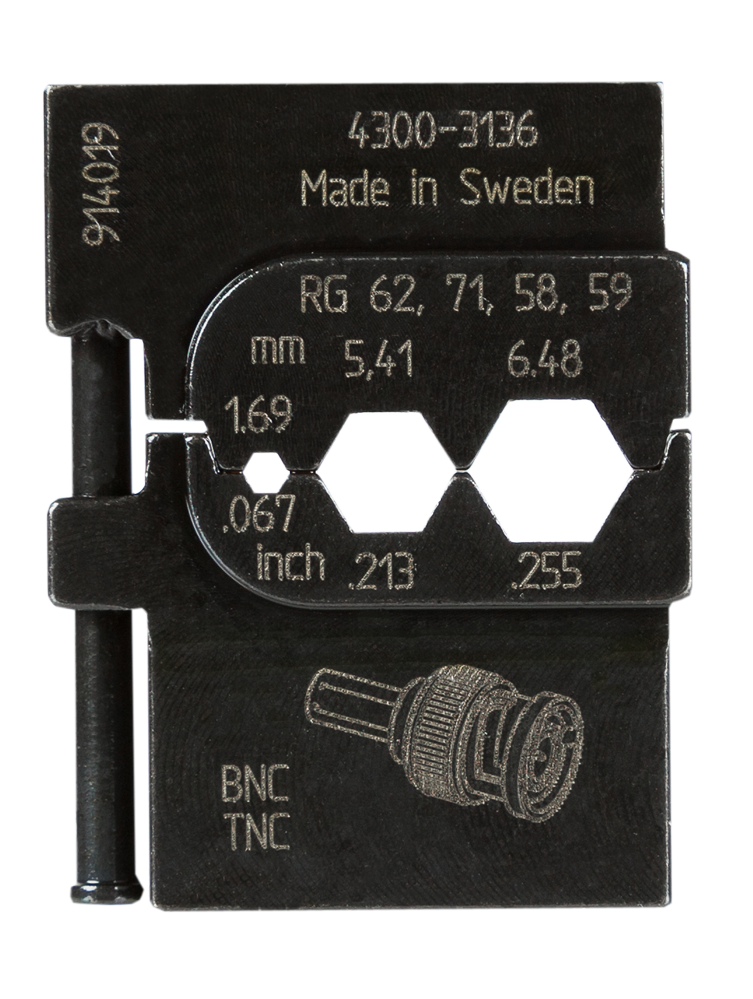

Pressmaster 4300-3136/AAA – Mobile die set

Description Features & Benefits Reliable – crimping performance is consistent and accurate with a parallel action stroke Easy to use – designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip Versatile – an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box Comfortable – the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions Hole in handle allows attachment of safety strap. Technical Data Length 30 mm/1.18″ Width 10 mm/0.39″ Height 39 mm/1.54″ Weight 72 gr/0.16 lb Wire size 86 gr/0.19 lb Crimp dimensions mm/mm2 1,69 mm HEX/5,41 mm HEX/6,48 mm HEX Crimp dimensions  inch/AWG 0.067”/0.213”/0.255” Connector Coaxial connector Description For example BNC, TNC connectors on RG 58, 59, 62, 71 Life span, cycles 20,000
